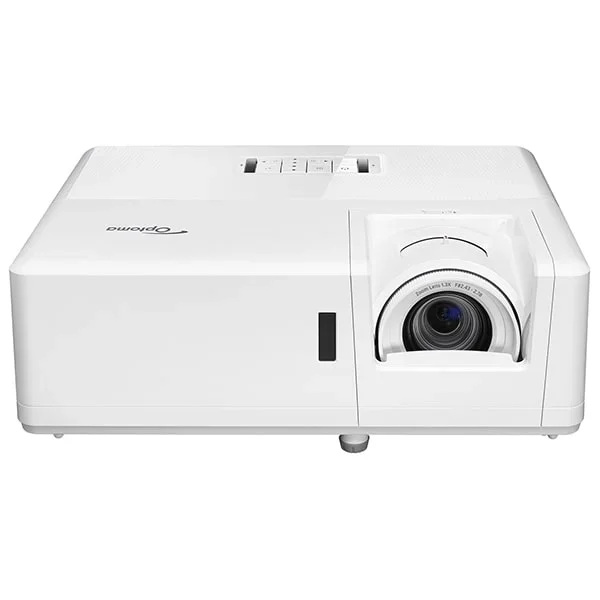

Optoma ZW403 White WXGA 4500 Lumens 4K Laser Light Projector

Description

Compact, Lightweight and Virtually Maintenance Free

Brighten any room with razor-sharp, 4,500 lumen, WXGA projection with the remarkable Optoma ZW403. A laser light source eliminates lamp and filter replacements for up to 30,000 hours of low-cost and virtually maintenance-free operation.

Compact size, low weight and quiet operation make it perfect for classrooms, meeting rooms, board rooms and digital signage. Vertical keystone, 360° and portrait mode operation enable flexible installations.

HDMI and VGA inputs provide connectivity to high-quality 4K HDR digital video or legacy analog video sources while LAN and RS-232 enable control via Crestron, Extron, AMX or Telnet. A 10W speaker provides rich audio for all-in-one applications.

Key Features

• Projection Method: Front
• Projection Method: Rear
• Projection Method: Ceiling
• 3D Type: 3D Ready
• Minimum Focal Length: 16.90 mm
• Maximum Focal Length: 21.60 mm
• Maximum Diagonal Image Size: 26.32 ft
• Optical Zoom: 1.3x
• Number of Lamps: 1
• Lamp Type: Laser

• Normal Mode Lamp Life: 20000 Hour
• Economy Mode Lamp Life: 30000 Hour
• Standard Mode Brightness: 4500 lm
• Native Resolution: 1280 x 800
• Graphic Mode: WXGA
• Maximum Resolution: 4096 x 2160
• Native Aspect Ratio: 16:10
• Contrast Ratio: 300,000:1
• Video Signal Standard: HDTV

Tech Specs

• Display Technology Texas Instruments™ 0.65” WXGA DMD
• Color Wheel 4 segment RGBY
• Native Resolution WXGA (1280 x 800)
• Maximum Resolution HDMI 2.0: 4K UHD (3840 x 2160 @ 60Hz) 4K (4096 x 2160, 60Hz) HDMI 1.4: WXGA (1920 x 1200)
• Brightness 4,500 ANSI lumens
• Contrast Ratio 300,000:1 (Extreme Black enabled) 1,800:1 full on/full off
• Displayable Colors 1.07 billion
• Lamp Life* Up to 30,000 hrs (Eco), 20,000 hrs (Normal)
• Light Source Type* DuraCore laser
• Projection Method 360°, front, rear, ceiling mount, table top: 360°: auto dims to 60%±5% in 195° – 345° orientation; Portrait: auto dims to 90%±5%
• Keystone Correction ±30° vertical
• Geometry Vertical keystone
• Uniformity 75%
• Offset 100%
• Aspect Ratio 16:10 (native), 16:9, 4:3, LBX, auto compatible

• Throw Ratio 1.19-1.54:1±5%
• Projection Distance 3’ – 32.6’ (without zoom)
• Image Size 19.7” – 315.8”
• Projection Lens f=16.90~21.60mm, F=2.43~2.78mm
• Optical Zoom 1.3x
• Digital Zoom 0.8 – 2.0x
• Audio 10W
• Noise Level 32db
• Remote Control Full size remote with laser pointer
• 360° and Portrait mode operation Yes
• Operating Temperature 41–104°F (5–40°C), 85% max humidity
• Power Supply AC input 100–240V, 50–60Hz, auto-switching
• Power Consumption Bright: 219W typical, 252W max; Eco: 162W typical, 186W max
• High Altitude Operating temperature at sea level up to 10,000 feet = 104° F (max); Must manually switch to high altitude mode from 5,000 feet and above (using OSD menu) to maintain optimal functionality

Compatibility Specs

• Computer Compatibility VGA, SVGA, HDTV(720P), WXGA, WXGA+, SXGA, SXGA+, UXGA, HDTV(1080p), WXGA, 4K, 4K UHD
• Video Input Compatibility PAL, SECAM, 576i/p, NTSC, 480i/p, HDTV 720p/1080i/1080p 4K UHD 2160p (24/50/60 Hz), 4K
• 3D Compatibility† Supports all HDMI 1.4a mandatory 3D formats (Frame pack, side-by-side, top-bottom) and up converts frame rate from 60Hz to 120Hz or 24Hz to 144Hz (i.e. 60 or 72 frames per eye). 3D glasses are needed and sold separately. Refer to user manual for details.
• Vertical Scan Rate 24 ~ 85 Hz (120 Hz for 1080p 3D feature)
• Horizontal Scan Rate 15.375 ~ 91.146 KHz
• User Controls Graphic user interface and on-screen menu in 27 languages
• I/O Connection Ports 1x HDMI 2.0 (HDCP 2.2, MHL), 1x HDMI 1.4, 1x VGA, 1x audio in (3.5mm), 1x USB-A (power, 5V, 1.5A), 1x micro USB (service)
• Control 1x RJ-45, 1x RS-232C

Physical Specifications

• Security Kensington® lock port, password (OSD)
• Weight 9.4 lbs
• Dimensions (W x H x D) 13.26” x 4.8” x 10.5”

Whats Included

• WXGA Laser Projector
• AC Power Cable
• Remote Control
• Batteries
• Quick Start Guide

DOWNLOADS

	Optoma ZW403 WXGA 4500 Lumens 4K Laser Light Projector User Manual
	Optoma ZW403 WXGA 4500 Lumens 4K Laser Light Projector Data Sheet
