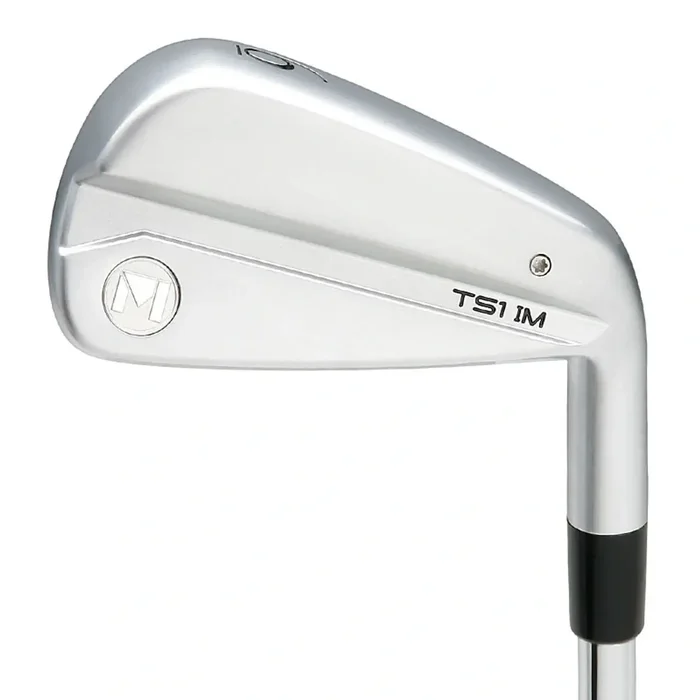

Maltby TS1 IM Forged Iron Heads
The Maltby TS1 IM Forged Irons represent a breakthrough in muscle back iron design, combining traditional forged aesthetics with modern game improvement technology. Featuring an innovative three-piece construction, these irons deliver incredible feel, explosive ball speeds, and unmatched forgiveness — making them ideal for discerning players seeking performance without compromise.
Revolutionary Injected Muscle Design
Built using a precision 5-step forging process, the TS1 IM iron heads are crafted from 1025C carbon steel and integrated with a 2.1mm MS300 Super Maraging steel face. This premium alloy provides superior strength and elasticity, enabling a thinner face for faster ball speeds and a soft, responsive feel at impact.
An internal co-forged tungsten weight is strategically placed low and toward the toe to perfectly center the vertical center of gravity, promoting greater stability and consistency even on off-center strikes.
To enhance sound, feel, and performance, each hollow club head is filled with a proprietary polymer—a feature rarely seen in traditional forged irons.
Traditional Look, Modern Performance
While the TS1 IM presents the sleek profile of a traditional blade, it delivers Super Game Improvement playability with an impressive MPF rating exceeding 700. Whether you’re attacking pins or shaping shots, these irons provide the forgiveness and control you need to play your best.
Advanced Face Technology for Explosive Results
The face of each TS1 IM iron is made from MS300 Super Maraging Steel, a low-carbon, nickel-cobalt alloy with high tensile strength. This material allows for an ultra-thin 2.1mm face, resulting in increased ball speed, a softer feel, and more consistent spin and trajectory.
Upgrades Over the Original TS1
-
High-Speed MS300 Face: Replacing traditional carbon steel for better performance
-
Co-Forged Tungsten & Polymer Fill: Enhanced stability and feel across the face
-
Improved Sole Design: Refined bounce angles, sole radius, and widths for better turf interaction
-
Optimized Loft Gapping: More precise distance control in short irons and wedges
-
Reduced Offset: Preferred by better players for a cleaner, more workable look
-
Pearl Nickel Chrome Finish: Anti-glare and highly durable
Key Features & Benefits
- True Billet Forged 3-piece iron head construction
- Soft Polymer Injected Core for superior feel and sound
- CNC Milled Face & Multi-Groove Technology for precise spin and ball control
- Super Game Improvement Performance (PF701+)
- Modern Lofts and centered CG for ideal trajectory and distance
- Tour-Inspired Sole Grind for versatile turf interaction
- Universal Hosel Compatibility: Accepts both .370″ and .355″ shafts
Note: This is a club head only and not an assembled golf club
Click Here For Maltby KE4 TC Pro Driver Head
Club Specifications
| Club | Loft (°) | Lie (°) | Weight (g) | Offset (in) | Hosel ID | Bounce (°) | Hand |
|---|---|---|---|---|---|---|---|
| 3 | 20 | 60 | 239 | 0.110 | UNIV | 3 | RH |
| 4 | 22 | 60.5 | 246 | 0.110 | UNIV | 3 | RH |
| 5 | 25.5 | 61 | 253 | 0.110 | UNIV | 3 | RH |
| 6 | 29 | 61.5 | 260 | 0.100 | UNIV | 4 | RH |
| 7 | 32.5 | 62 | 267 | 0.090 | UNIV | 4 | RH |
| 8 | 36 | 62.5 | 274 | 0.090 | UNIV | 4 | RH |
| 9 | 40 | 63 | 281 | 0.090 | UNIV | 5 | RH |
| P | 44 | 63.5 | 288 | 0.080 | UNIV | 5 | RH |
| G | 48 | 64 | 292 | 0.080 | UNIV | 5 | RH |
Club Details
| Feature | Specification |
|---|---|
| Finish | Pearl Chrome |
| Face Material | MS300 Maraging Steel |
| Body Material | 1025C Carbon Steel |
| Blade Length | 3.161″ |
| Toe Height | 2.157″ |
| Hosel Length | 2.220″ |
| Hosel OD | 0.520″ |
| Sole Width | 0.740″ – 0.750″ |
| Bore Depth | 1.375″ – 1.420″ |
| C.O.G. | 0.788″ |
| M.O.I. | 11.8759 oz-in² |
| MPF | 728 |
| Number: |
3 iron , 4 iron , 5 iron , 6 iron , 7 iron , 8 iron , 9 iron , Pitching Wedge , Gap Wedge |
|---|
